Laser-Driven Tunable Light Source

The TLS-EQ-9 is a tunable light source optimized to provide monochromatic light across a broad wavelength range.

The TLS-EQ-9 is based on the EQ-9 LDLS, offering mid-range output power in a flexible, easy-to-use package.

The spectral resolution of the TLS-EQ-9 is user-configurable, allowing users to select different bandwidths for different applications. The stable performance of the TLS-EQ-9 translates to consistent, reliable results. The fast step time and high brightness of the TLS-EQ-9 enable high process throughput.

Users will find the TLS-EQ-9 to be extremely easy to use and maintain. The intuitive graphic user interface (GUI) allows for the creation of automated scans to rapidly step between prescribed wavelength bands. The fiber-coupled output of the TLS-EQ-9 makes it simple to integrate into a variety of optical configurations.



Properties

Wavelength Range 380 nm – 1100 nm
Wavelength Accuracy +/- 0.5 nm
Scan Speed <20 ms for a 2 nm step
Output Type 1500 µm fiber​ optic cable
Numerical Aperture 0.39 NA
Spectral Resolution (bandwidth, FWHM) 6.0 nm
Laser Class Class 1 (IEC 60825: 2014)



Typical Performance

Maximum in-band flux​ 2.37 mW at 824 nm
Average in-band flux​ ~1.20 mW

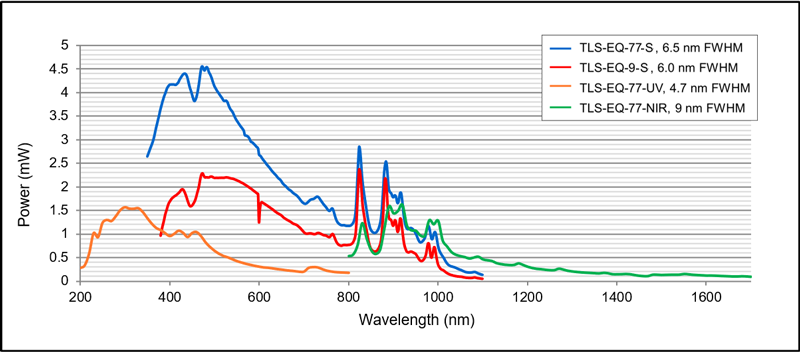

In-Band Light Flux Comparison

Average in-band light flux with standard output fibers. For reference only.

TLS Spectral Flux Graph Feb 2021
