Laser-Driven Light Sources (LDLS™)

Laser-Driven Light Sources (LDLS™)



Energetiq's innovative LDLS technology uses a laser to directly heat a Xenon plasma to the high temperatures necessary for efficient deep ultraviolet production. In traditional approaches such as arc and deuterium lamps, the brightness, UV power, and lamp lifetime are limited by the use of electrodes to couple power to the plasma. LDLS technology creates small, high brightness plasma that allows efficient light collection, broad spectral range from the deepest UV through visible and beyond, and long lamp life.

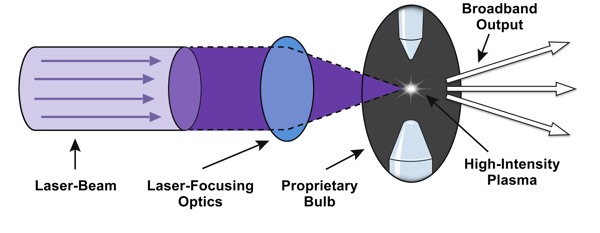

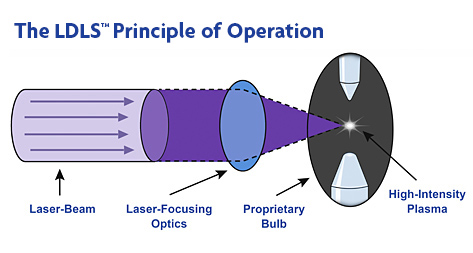

Principle-Animation

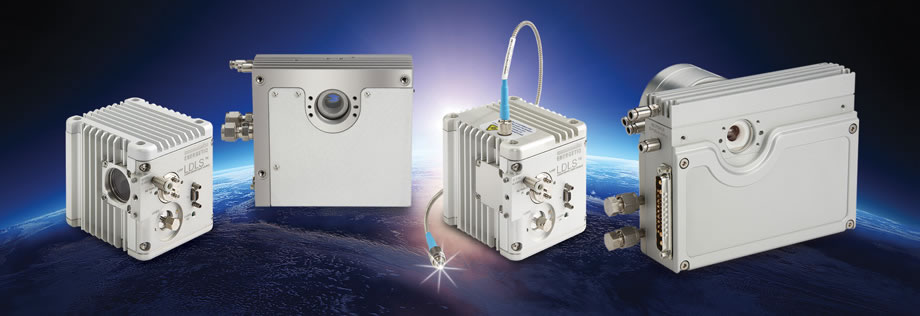

Energetiq LDLS™ Products

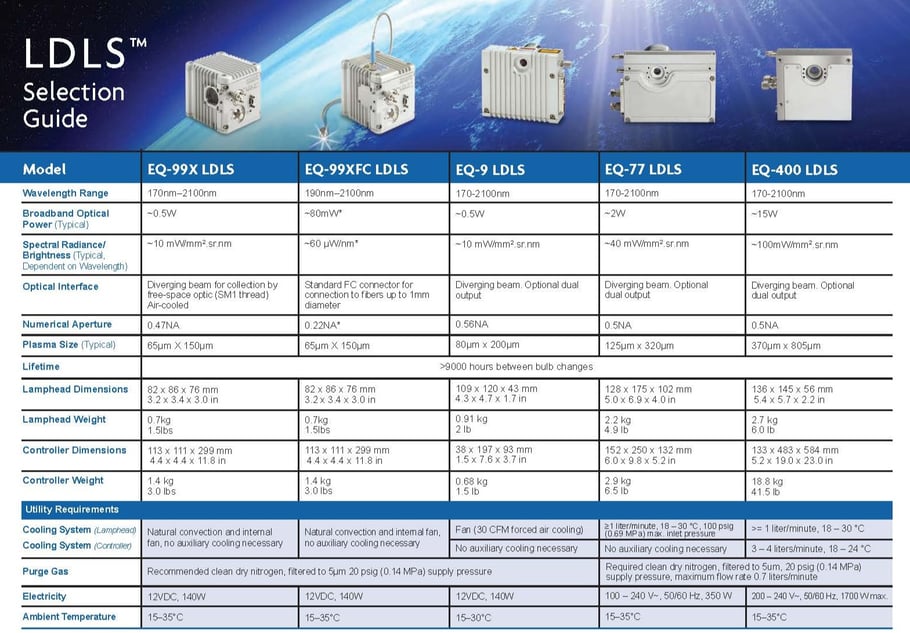

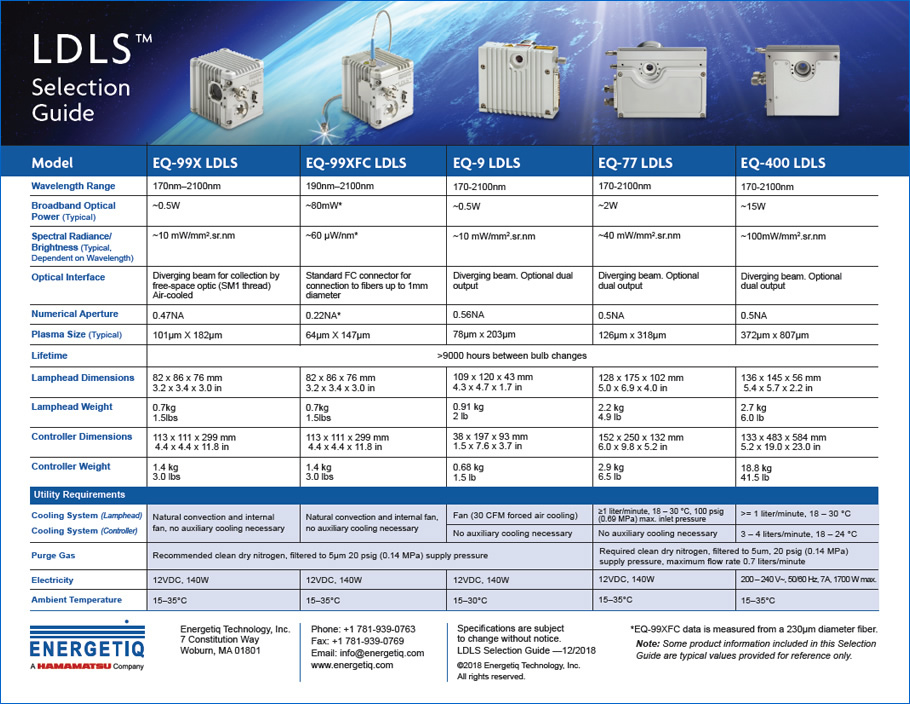

Compare characteristics and specifications of our Laser-Driven Light Sources. Click on table below to view full selection guide document.

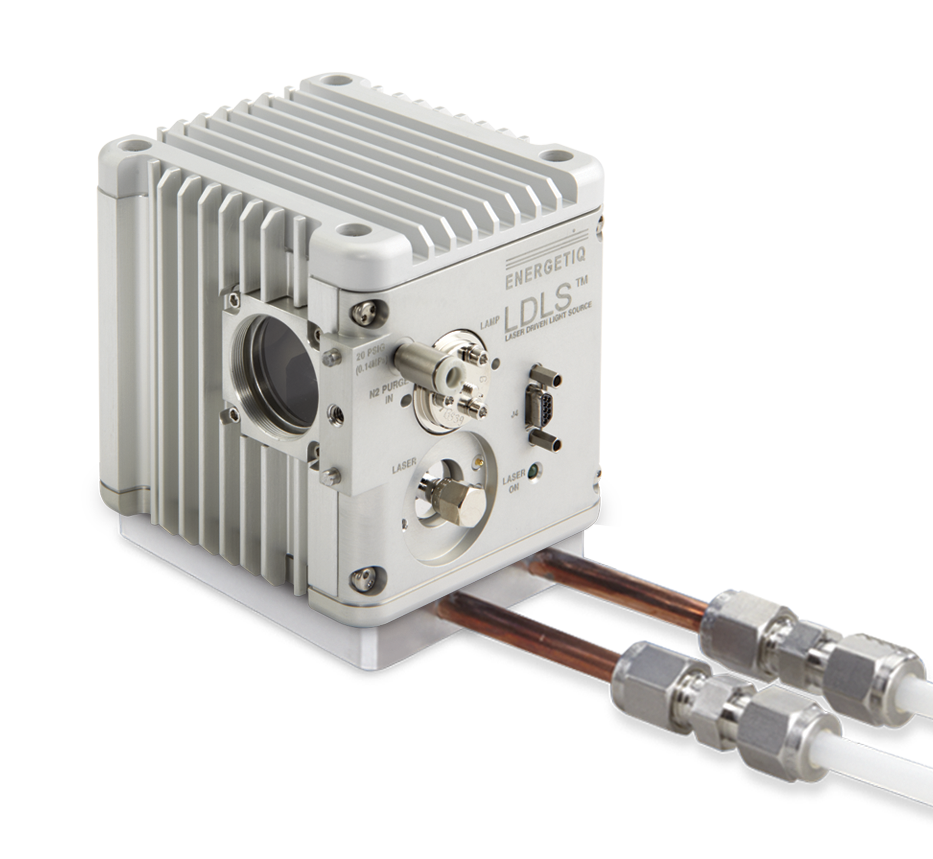

  EQ-99X

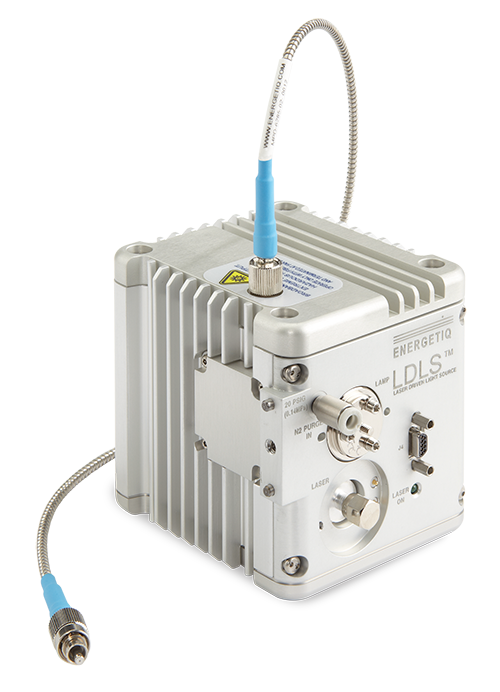

EQ-99X-FC

EQ-77

EQ-400

Wavelength Range

170 nm – 2500 nm 190 nm – 2500 nm 170 nm – 2500 nm 170 nm – 2500 nm

Plasma Size (FWHM)*

100 µm x 180 µm

100 µm x 180 µm

125 µm x 320 µm

370 µm x 800 µm

Numerical Aperture (NA)

0.47

Output Fiber: 0.22

0.5

0.5

Bulb Lifetime

10,000 hours 10,000 hours 10,000 hours 10,000 hours

Laser Class

Class 1 (IEC 60825-1: 2014)

Class 1 (IEC 60825-1: 2014)

Class 1 (IEC 60825-1: 2014)

Class 4 (IEC 60825-1: 2014)

  *Average

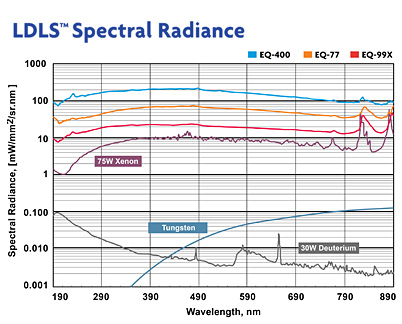

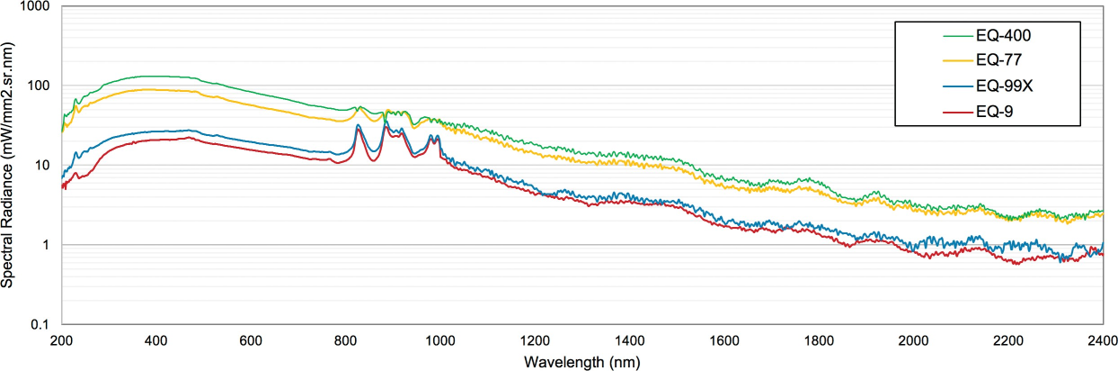

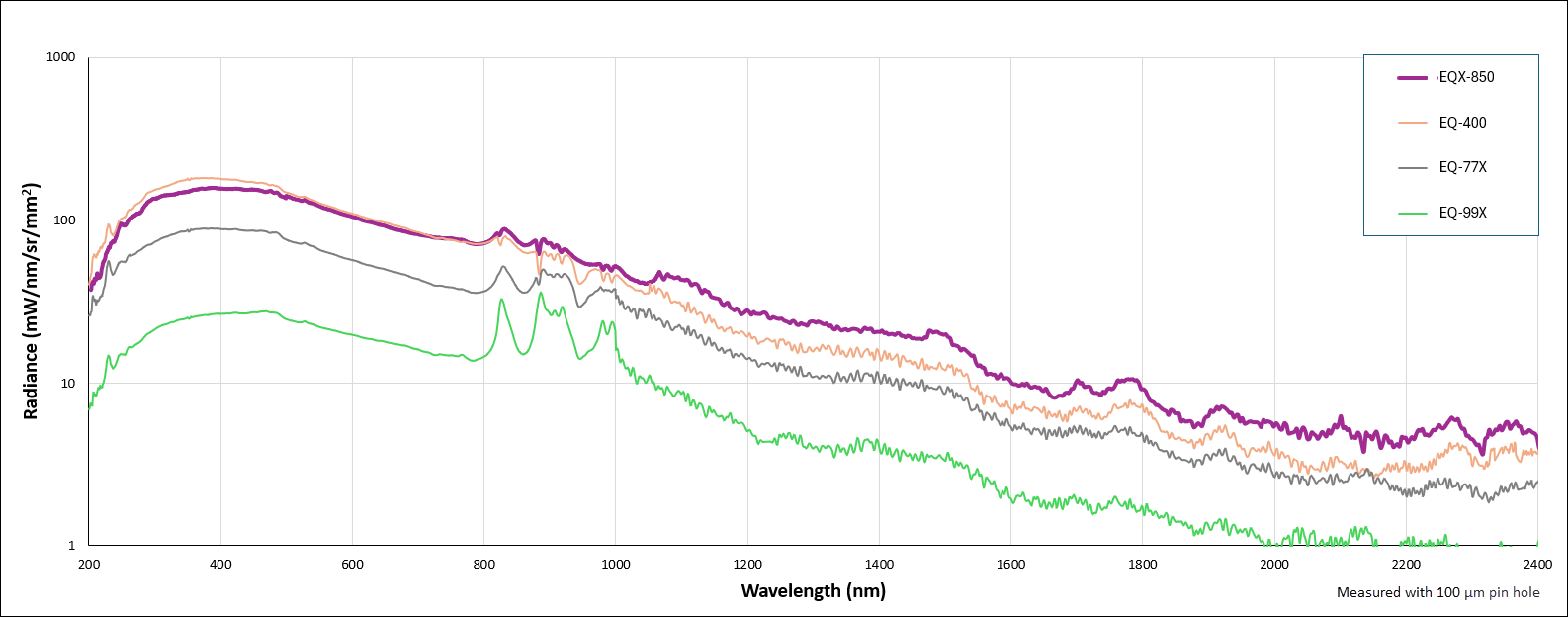

LDLS Spectral Radiance Comparison

Average radiance, measured with quartz output windows. For reference only.

Spectral Radiance Updated Feb 2 2021



OEM SolutionsEQ-9 LDLS OEM Light Source

With more than a decade of experience in providing advanced high brightness light sources and optical assemblies for light delivery, we have launched a range of systems optimized to meet our OEM customer needs. Our experienced high technology development team of scientists and engineers is eager to partner to provide a custom solution, whatever the application.
