Chromatiq Spectral Engine™
High-Fidelity Spectrum Matching
Match Any Light Spectrum, or Design Your Own
The Chromatiq Spectral Engine™ (CSE) is a sophisticated light source capable of matching real-world lighting conditions, emulating illuminant standards, and creating custom spectra.
The CSE offers unparalleled spectrum match accuracy as well as repeatability and speed when switching between spectra to optimize optical testing and calibration procedures in the production environment.
The CSE is built around the high radiance and stability of the Laser-Driven Light Source (LDLS™). When combined, it enables consistent high-fidelity spectrum matching, rapid switching between selected spectra, and stable color content at various intensities. These attributes support the accurate, repeatable, and efficient production of high-end color and image sensors.
Features
- High-fidelity spectral matching
- Create and combine custom spectra to meet specific requirements
- Integrate into automated calibration and testing systems
Get the Specs
Match Any Spectrum
Check out our virtual demo to see how easy it is to match real-world lighting conditions
Fast switching with no setting time.
<10 ms settling time between targeted spectra
Principle of Operation
Optical design optimized for high-fidelity matching
| CSE-EQ-99-VIS Performance Specifications: | |
|---|---|
|
Wavelength Range
|
380 nm – 780 nm
|
|
Spectral Resolution
|
< 4.5 nm
|
|
Switching Speed
|
< 10 ms
|
|
Output Type
|
6.5 mm liquid light guide
|

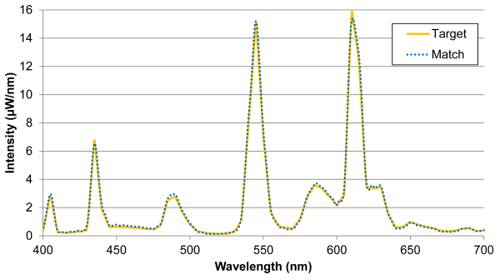

Example Match: CIE F12
Applications
- Color and image sensor calibration and testing
- Image sensor development for vehicle perception systems
- Color measurement system development and testing
Resources
Energetiq celebrates the launch of Chromatiq Spectral Engine.
Ready to see how CSE can optimize your process?
Connect with our team to learn how our Chromatiq Spectral Engine delivers high brightness, high throughput, and reliable performance in complex systems.
